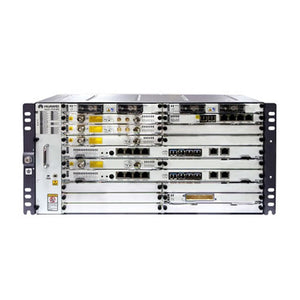

The OptiX RTN 980X is a high-capacity split-mount IP microwave system (IDU + ODU) delivering up to 2.5 Gbps per carrier with 8192QAM modulation. Supporting up to 20 RF directions in a 5U chassis, it is the ideal solution for 5G/4G base station backhaul in fiber-scarce environments, enterprise leased lines, and MPLS VPN networks.
Key Specifications
- Model: OptiX RTN 980X
- Type: Split-mount IP microwave (IDU indoor unit + ODU outdoor unit)
- IDU Form Factor: 5U, 19-inch rack
- RF Frequency: 6–42 GHz
- Channel Bandwidth: 3.5 / 7 / 14 / 28 / 40 / 56 / 112 / 224 MHz
- Modulation: Up to 8192QAM
- Single-Carrier Capacity: Up to 2.5 Gbps
- Switching Capacity: 120 Gbps
- Service Interfaces: E1 / STM-1 / FE / GE / 10GE
- RF Directions: Up to 20 (5U chassis)
5G & Advanced Features
- XPIC cross-polarization interference cancellation
- EPLA enhanced path link aggregation
- AES-256 air interface encryption
- IEEE 1588v2 precision timing
- SRv6 & EVPN support
Reliability
- 1+1 hot-standby for main control unit and power supply
Physical (IDU)
- Dimensions (W×D×H): 442 × 225 × 220 mm (5U)
- Weight: approx. 7.1 kg
Typical Applications
- 5G/4G base station microwave backhaul
- Fiber-scarce coverage scenarios
- Enterprise leased line services
- MPLS VPN
Description
The OptiX RTN 980X is a high-capacity split-mount IP microwave system (IDU + ODU) delivering up to 2.5 Gbps per carrier with 8192QAM modulation. Supporting up to 20 RF directions in a 5U chassis, it is the ideal solution for 5G/4G base station backhaul in fiber-scarce environments, enterprise leased lines, and MPLS VPN networks.
Key Specifications
- Model: OptiX RTN 980X
- Type: Split-mount IP microwave (IDU indoor unit + ODU outdoor unit)
- IDU Form Factor: 5U, 19-inch rack
- RF Frequency: 6–42 GHz
- Channel Bandwidth: 3.5 / 7 / 14 / 28 / 40 / 56 / 112 / 224 MHz
- Modulation: Up to 8192QAM
- Single-Carrier Capacity: Up to 2.5 Gbps
- Switching Capacity: 120 Gbps
- Service Interfaces: E1 / STM-1 / FE / GE / 10GE
- RF Directions: Up to 20 (5U chassis)
5G & Advanced Features
- XPIC cross-polarization interference cancellation
- EPLA enhanced path link aggregation
- AES-256 air interface encryption
- IEEE 1588v2 precision timing
- SRv6 & EVPN support
Reliability
- 1+1 hot-standby for main control unit and power supply
Physical (IDU)
- Dimensions (W×D×H): 442 × 225 × 220 mm (5U)
- Weight: approx. 7.1 kg
Typical Applications
- 5G/4G base station microwave backhaul
- Fiber-scarce coverage scenarios
- Enterprise leased line services
- MPLS VPN
RTN 980X IP Microwave Transmission System
- Regular price
- $10,000.00
- Sale price
- $10,000.00
